Application Type
Utility Model
Application SubType
Utility model
(10) Registration Number and Date
Status
PUBLISHED/${sta2}
(180) Expiration Date
(20) Filing Number and Date
PH 2/2024/051565 2024.11.22
(40) Publication Number and Date
PH 2/2024/051565
U1
2025.05.09
(86) PCT Filing Number and Date
(87) PCT Publication Number and Date
(85) National Entry Date
(30) Priority Details
(51) IPC Classes
(74) Representative Name
(EN) BALMACEDA, Eduardo Jr. T. : 900 San Marcelino St. Ermita
(54) Title
(EN) A System for Hybrid Wireless Guitar Effects Activation
(57) Abstract
(EN)

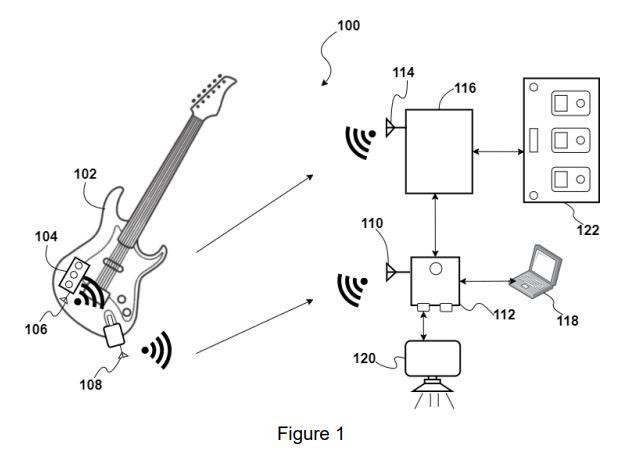

The present utility model is a computer-implemented system for hybrid wireless guitar effects activation which enables seamless integration and control of both physical and virtual guitar effects. The system comprises a guitar equipped with a transceiver module to transmit audio signals and a switching assembly featuring multiple switches. These switches are managed by a microcontroller that processes electrical control signals, which are wirelessly transmitted to a receiving activation assembly. The receiving activation assembly includes transceivers, microcontrollers, and latching relays to activate a chain of guitar pedal effects. It also supports hybrid mode wherein physical effects integrate with virtual effects activated through a computing device connected via an audio interface. The system is powered by a rechargeable battery with a step-up converter. This innovative design enhances flexibility and user experience by allowing musicians to wirelessly switch between or combine traditional pedal effects and virtual effects with precision and ease.

(58) Citations
Document Type Date Action
Event NameDateStatus
Filing2024.11.22Filed
Publication2025.05.09PUBLISHED
Publication2025.05.13PUBLISHED
